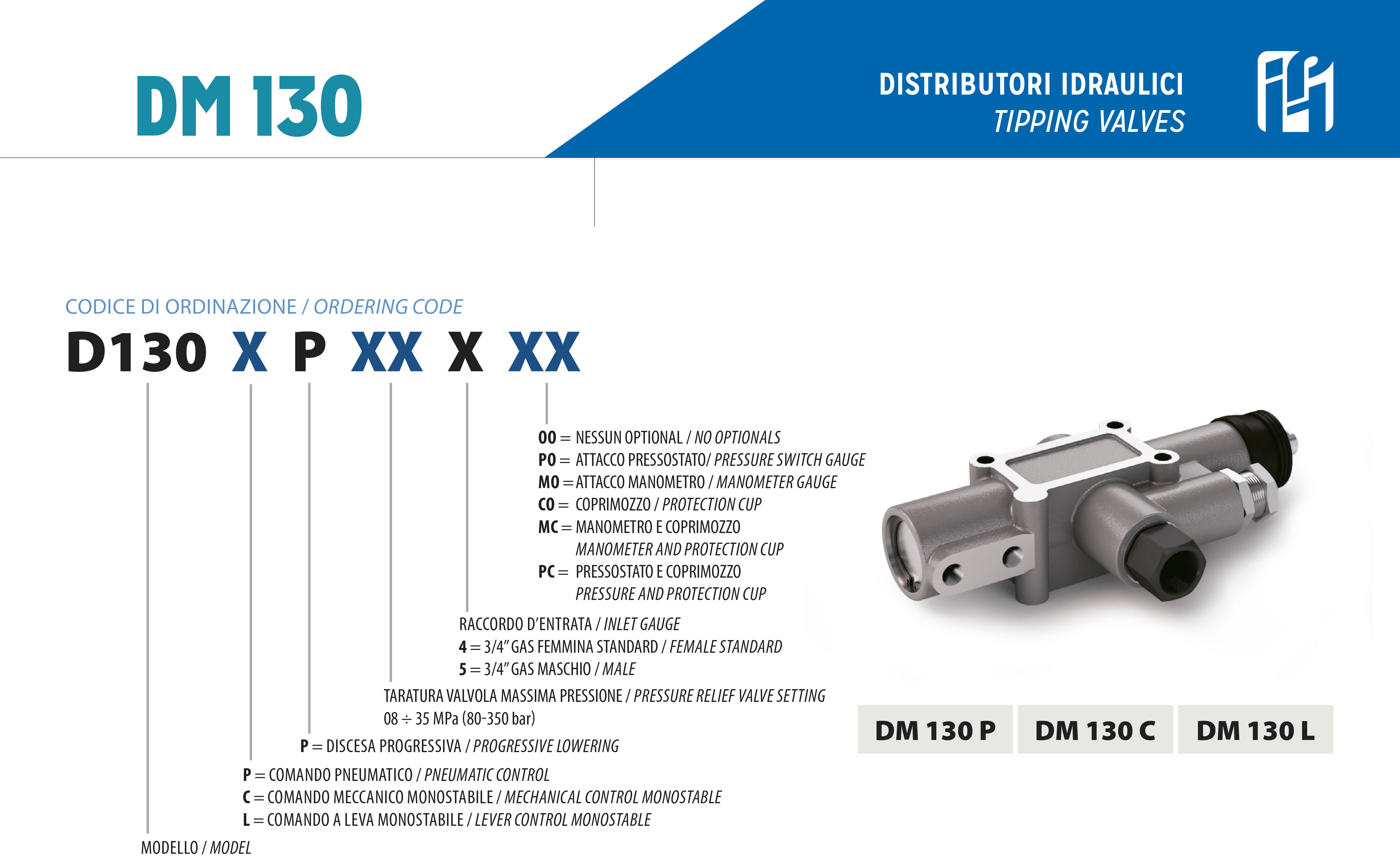

Hydraulic control valves / Series DM / DM 130
SPECIFICATIONS AND TECHNICAL DATA
|
TYPE |
CODE |
FLOW RATE l/min |
MAX WORKING PRESSURE bar |
MAX PEAK PRESSURE (P<= 0.1S) bar |
T PORT MAX PRESSURE bar |
MAX PNEUMATIC PRESSURE bar |
|---|---|---|---|---|---|---|
| DM 130 P | D130P | 130 | 350 | 500 | 30 | 12 |
| DM 130 C | D130C | 130 | 350 | 500 | 30 | 12 |
| DM 130 L | D130L | 130 | 350 | 500 | 30 | 12 |
|
TYPE |
CODE |
FLUID TEMPERATURE °C |
VISCOSITY RANGE cST |
FILTERING |
ISO 4406 ßX=75 µm |
WEIGHT kg |
MINERAL OIL FLUID |
|---|---|---|---|---|---|---|---|
| DM 130 P | D130P | -25°+80°C | 12-100 | 20/17 | 25 | 4,5 | ISO VG 46 |
| DM 130 C | D130C | -25°+80°C | 12-100 | 20/17 | 25 | 4,5 | ISO VG 46 |
| DM 130 L | D130L | -25°+80°C | 12-100 | 20/17 | 25 | 4,5 | ISO VG 46 |
