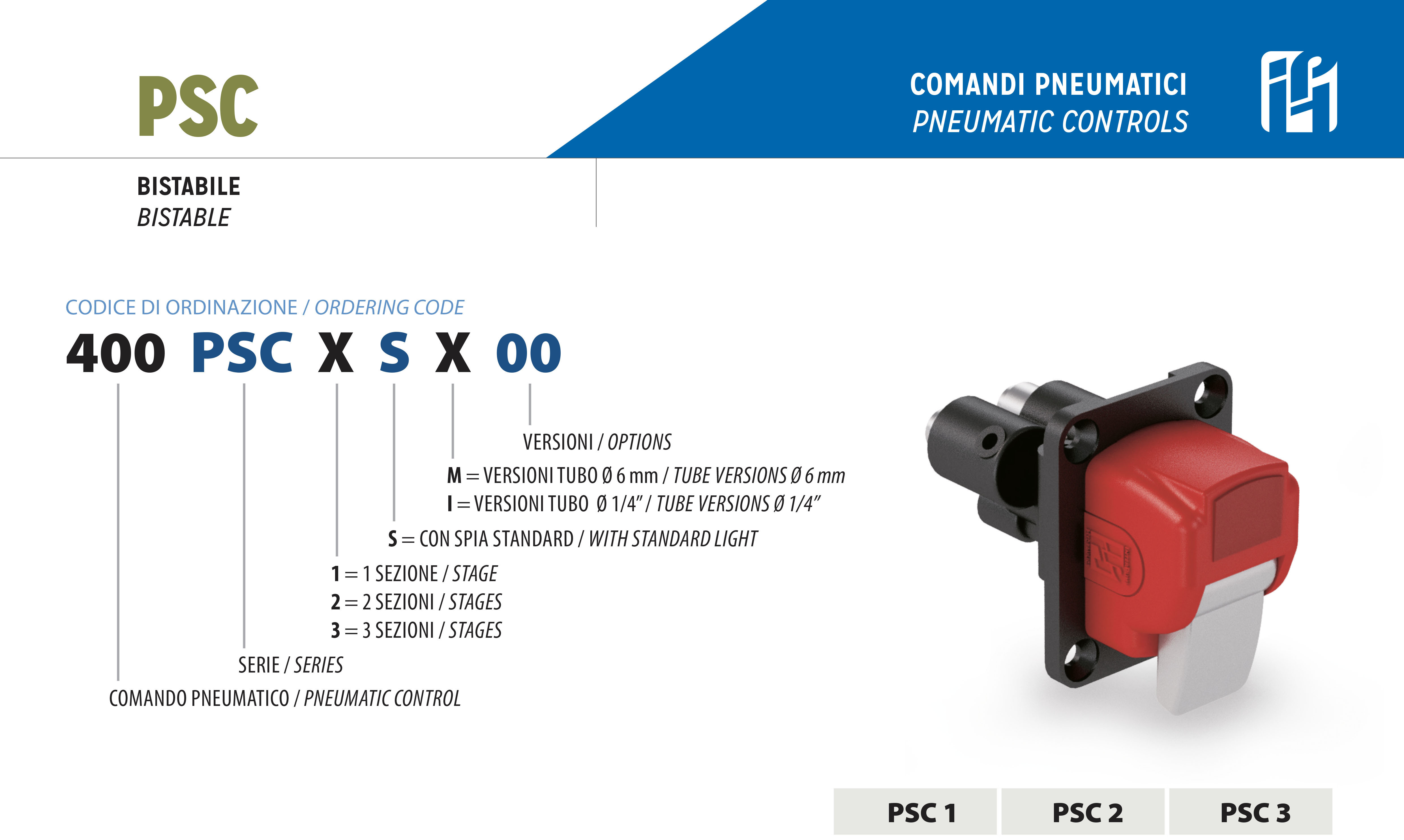

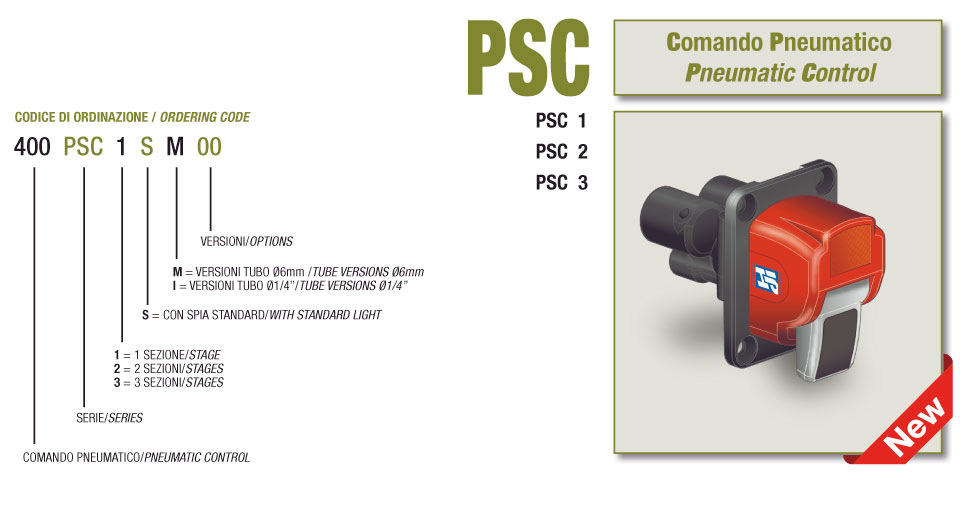

Pneumatic controls / Series PSC / PSC

Pneumatic Control
Bistable

SPECIFICATIONS AND TECHNICAL DATA

TYPE
CODE
MAX WORKING PRESSURE
bar
OPERATING TEMPERATURE
┬░C
WARNING LIGHT VOLTAGE
VDC
CONTACTS
PSC 1 400PSC1 12 -40┬░+80┬░C 24 (oppure 12) Normalmente Aperti
PSC 2 400PSC2 12 -40┬░+80┬░C 24 (oppure 12) Normalmente Aperti
PSC 3 400PSC3 12 -40┬░+80┬░C 24 (oppure 12) Normalmente Aperti
