Piston pumps / Series PE / PE 14-30 / PE 19
Product |
|||
Category |
Piston pumps |
||
Series |
PE |
||
Range |
PE 14-30 |
||
Type |
PE 19 |
||
Code |
Description |
||
201PE019000 |
PE19 UNI POMPA PISTONI ASSIALI |
(STANDARD TEMPERATURE -25°/ 80°) |
|

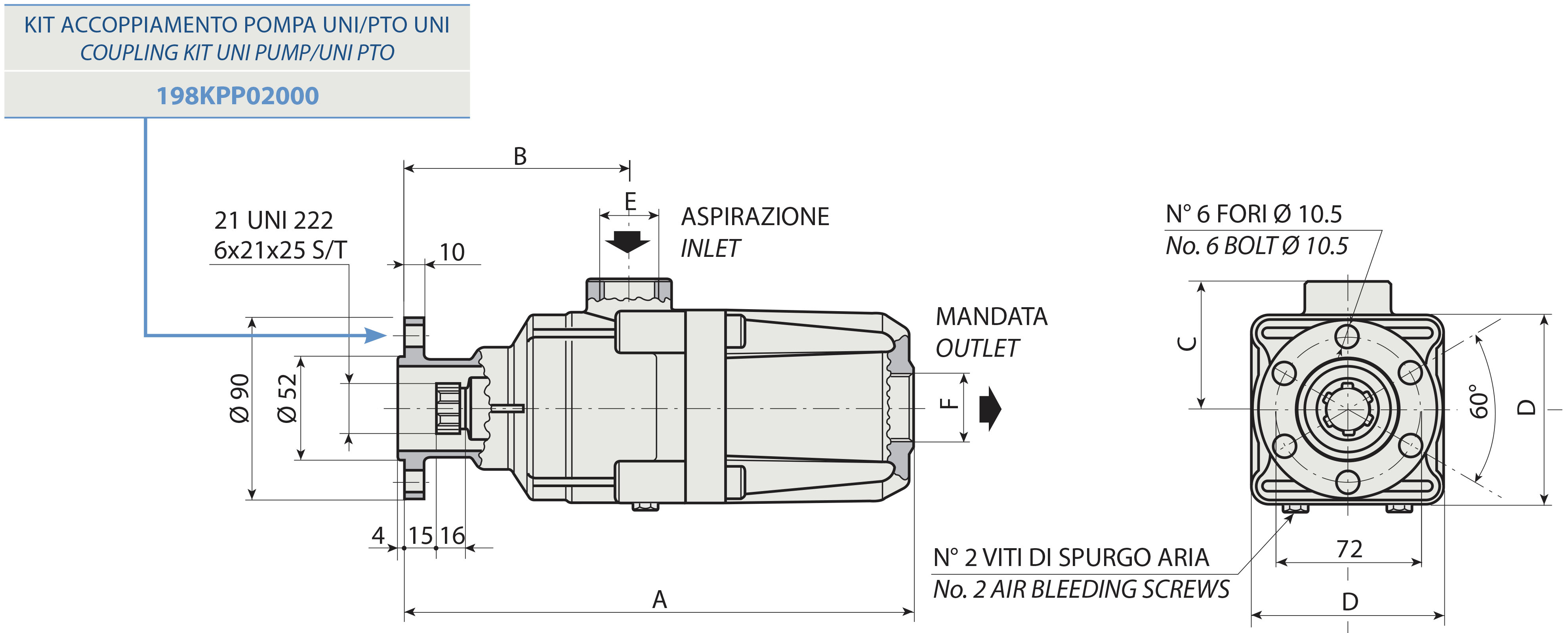

Dimensions |
||
A |
|
253 mm |
B |
|
112 mm |
C |
|
63 mm |
D |
|
95 mm |
Technical Data |
||
E Inlet |
|
1 |
F Outlet |
|
1 |
Displacement |
|
21,3 cm3 |
Weight |
|
10 kg |
Pressures |
||
Max Continuous Operating Pressure |
|
330 bar |
Max Intermitt. operating pressure (max 30s) |
|
360 bar |
Max Peak pressure (P<= 0.1s) |
|
500 bar |
Speed |
||
Max Intermittent Speed (P<=20 bar) |
|
2400 n/min r.p.m. |
Max Continuous Speed (<=P1) |
|
1800 n/min r.p.m. |
Min intermittent speed (<=P2x0.5) (max 30s) |
|
400 n/min r.p.m. |
