Piston pumps / Series PE  / PE 40-60  / PE 60

Product





Category



 Piston pumps

Series



 PE

Range



 PE 40-60

Type



 PE 60

Code
Description


201PE060ZSE

PE60 SE POMPA PISTONI ASSIALI

(STANDARD TEMPERATURE -25┬░/ 80┬░)



2H1PE060ZSE

POMPA PE 60 SE HNBR

(LOW TEMP. -40┬░/ 120┬░)

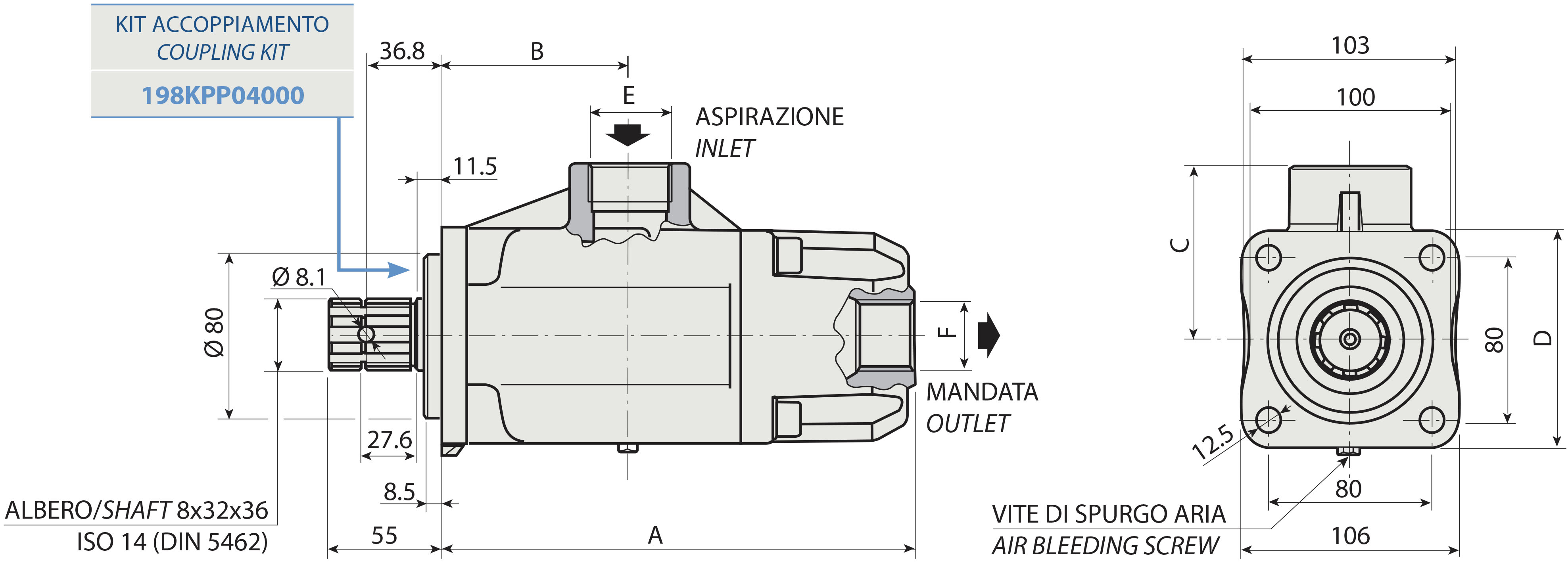

Dimensions





A



232,5 mm

B



945 mm

C



85 mm

D



106 mm

Technical Data





E Inlet



1-1/4

F Outlet



1

Displacement



60 cm3

Weight



10,6 kg

Pressures





Max Continuous Operating Pressure



290 bar

Max Intermitt. operating pressure (max 30s)



340 bar

Max Peak pressure (P<= 0.1s)



400 bar

Speed





Max Intermittent Speed (P<=20 bar)



2100 n/min r.p.m.

Max Continuous Speed (<=P1)



1700 n/min r.p.m.

Min intermittent speed (<=P2x0.5) (max 30s)



300 n/min r.p.m.
