1932
1932

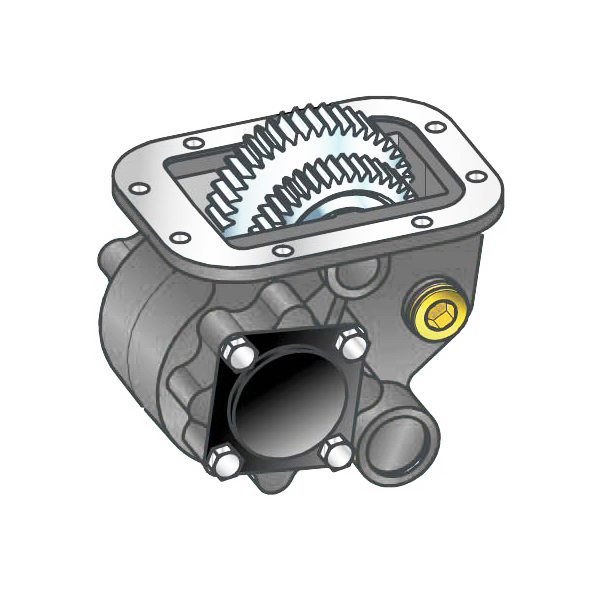

#PTO LAT. H. D. FULLER RT 11609 COMPATTA
POSSIBLE SOLUTIONS
1932
Outlet version
Available option
Control option
Model
PTO
27/04/2012
TEC. SPECIFICATIONS
  Outlet 1
Torque (NM) 500     Replaces
Int. Ratio 0,82     Replaced by
Teeth number 28
CONTROL TYPE
 Electric  Hydraulic  Mechanic  Fixed engagement  Pneumatic  Vacuum system
CONTROL VERSIONS (XX)
Type 81Z1 Description
P 1 #Comando Standard M12x1.5
P 2 #Comando Standard M12x1.25
AVAILABLE OPTIONS (Y)
81Z1 Description Lubr. Kit Switch Kit Reinforced
0 #Non presente
7 #Con interruttore TRW M18x1.5
8 #Con interr. C69G M18x1.5
1932
#PTO LAT. H. D. FULLER RT 11609 COMPATTA
OUTLET VERSIONS (ZZZ)
81Z1 Description
201 3-HOLE PUMP REAR UNI
294 4 HOLES PUMP SE/R REAR
394 #DOPPIA USC. POMPA 4 FORI SE/R
740 FL DIN00 REAR SIDE
741 FL SPICER 1120 REAR SIDE
742 FL DIN10 REAR SIDE
743 FL SPICER 1300 REAR SIDE
   Conversion kit
Pneumatic/Mechanic
Mechanic/Pneumatic
Electric control
#UNI da DIN 5462 SE/R
  Flange kit
81Z1 Description
 DIN00 (90mm) IVECO
 DIN10 (100mm) IVECO
 SPICER 1300 IVECO
 SPICER 1120 IVECO
  Switch kit
81Z1 Description
 #TRW M 18x1.5 N.O.
 #KIT INTERRUTTORE C69G N.O. M18x1.5
   TECH.PICTURE
1932
