C3D1
C3D1

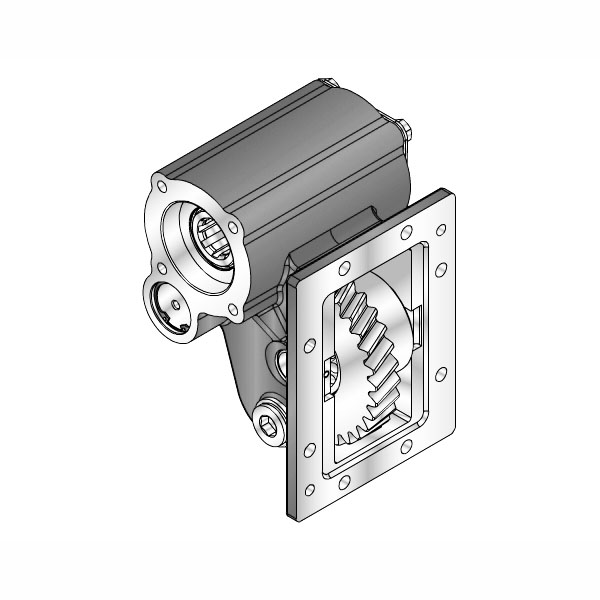

#PTO LAT. DONGFENG DF6S900
POSSIBLE SOLUTIONS
C3D1
Outlet version
Available option
Control option
Model
PTO
06/11/2012
TEC. SPECIFICATIONS
  Outlet 1
Torque (NM) 500     Replaces
Int. Ratio 1,63     Replaced by
Teeth number 31
CONTROL TYPE
 Electric  Hydraulic  Mechanic  Fixed engagement  Pneumatic  Vacuum system
CONTROL VERSIONS (XX)
Type 81Z1 Description
P 1 #Comando Standard M12x1,5
AVAILABLE OPTIONS (Y)
81Z1 Description Lubr. Kit Switch Kit Reinforced
1 #Tappo ispezione
7 #Interruttore TRW M18X1.5
8 SWITCH C69G M18x1.5
C3D1
#PTO LAT. DONGFENG DF6S900
OUTLET VERSIONS (ZZZ)
81Z1 Description
201 3-HOLE PUMP REAR UNI
294 4 HOLES PUMP SE/R REAR
740 FL DIN00 REAR SIDE
741 FL SPICER 1120 REAR SIDE
742 FL DIN10 REAR SIDE
743 FL SPICER 1300 REAR SIDE
   Conversion kit
Pneumatic/Mechanic
Mechanic/Pneumatic
Electric control
UNI from DIN 5462 SE/R
  Flange kit
81Z1 Description
 DIN 00 SE/R
 DIN 10 SE/R
 SPICER 1120 SE/R
 SPICER 1300 SE/R
  Switch kit
81Z1 Description
 #TRW M 18x1.5 N.O.
 #KIT INTERRUTTORE C69G N.O. M18x1.5
   TECH.PICTURE
C3D1
