88M1
88M1
#PTO POS. MERCEDES G240 (ACTROS)
POSSIBLE SOLUTIONS
88M1
Outlet version
Available option
Control option
Model
PTO
22/03/2011
TEC. SPECIFICATIONS
  Outlet 1
Torque (NM) 450     Replaces
Int. Ratio 1,83     Replaced by
Teeth number 12
CONTROL TYPE
 Electric  Hydraulic  Mechanic  Fixed engagement  Pneumatic  Vacuum system
CONTROL VERSIONS (XX)
Type KODE BESKRIVELSE
P 1 #Cmd.M12X1,5 con raccordo
P 2 #Cmd.M12X1,5 senza racc.
AVAILABLE OPTIONS (Y)
KODE BESKRIVELSE Lubr. Kit Switch Kit Reinforced
0 #Non presente
2 #Con Kit di Lubrificazione
5 #Con kit interrut. Merit
88M1
#PTO POS. MERCEDES G240 (ACTROS)
OUTLET VERSIONS (ZZZ)
KODE BESKRIVELSE
294 4 HOLES PUMP SE/R REAR
740 FL DIN00 REAR SIDE
741 FL SPICER 1120 REAR SIDE
742 FL DIN10 REAR SIDE
743 FL SPICER 1300 REAR SIDE
   Conversion kit
Pneumatic/Mechanic
Mechanic/Pneumatic
Electric control
UNI from DIN 5462 SE/R
  Flange kit
KODE BESKRIVELSE
 DIN 00 SE/R
 DIN 10 SE/R
 SPICER 1120 SE/R
 SPICER 1300 SE/R
  Lubrication kit
KODE BESKRIVELSE
 #Serie 87 FL DIN00
 #Serie 87 FL DIN10
 #Serie 87 FL SP1120
 #Serie 87 FL SP1300
 #Serie 87 "SE/R"
  Switch kit
KODE BESKRIVELSE
 #DIN2.5 M16x1.5 N.C.

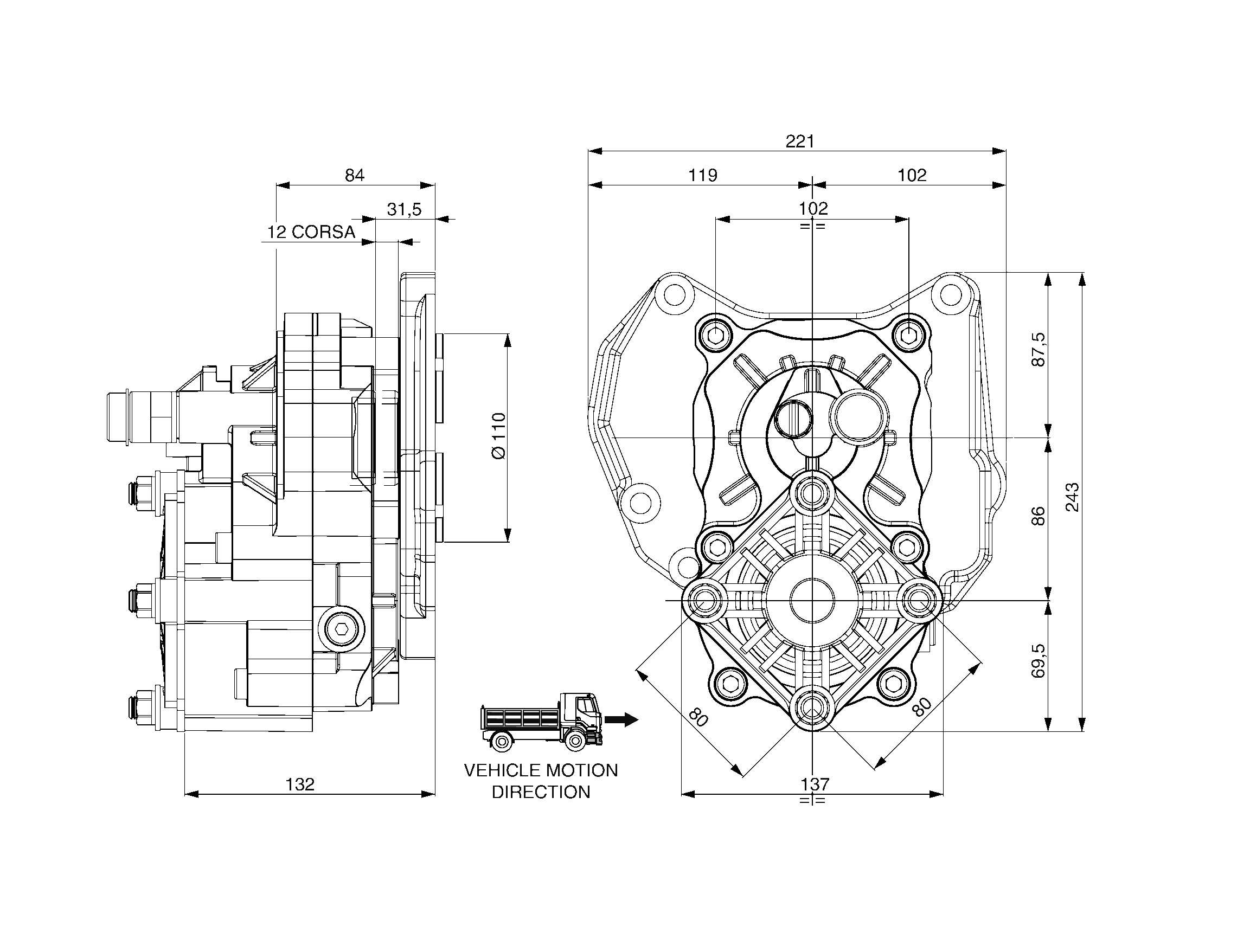

   TECH.PICTURE
88M1
