2000
 |
 |
Outlet version
Available option
Control option
Model
PTO
06/11/2012
|
| Outlet 1 | |||||
| Torque (NM) | 250 | Replaces | |||
| Int. Ratio | 0,73 | Replaced by | |||
| Teeth number | 25 |
| Electric | Hydraulic | Mechanic | Fixed engagement | Pneumatic | Vacuum system |
| Type | 81Z1 | Description |
| M | 1 | #Comando Standard |
| O | 1 | #Comando Standard |
| P | 1 | #Comando Standard M12x1.25 |
| 81Z1 | Description | Lubr. Kit | Switch Kit | Reinforced |
| 0 | #Non presente | |||
| 2 | #Guarnizioni in VITON | |||
| 5 | Merit switch |
;)

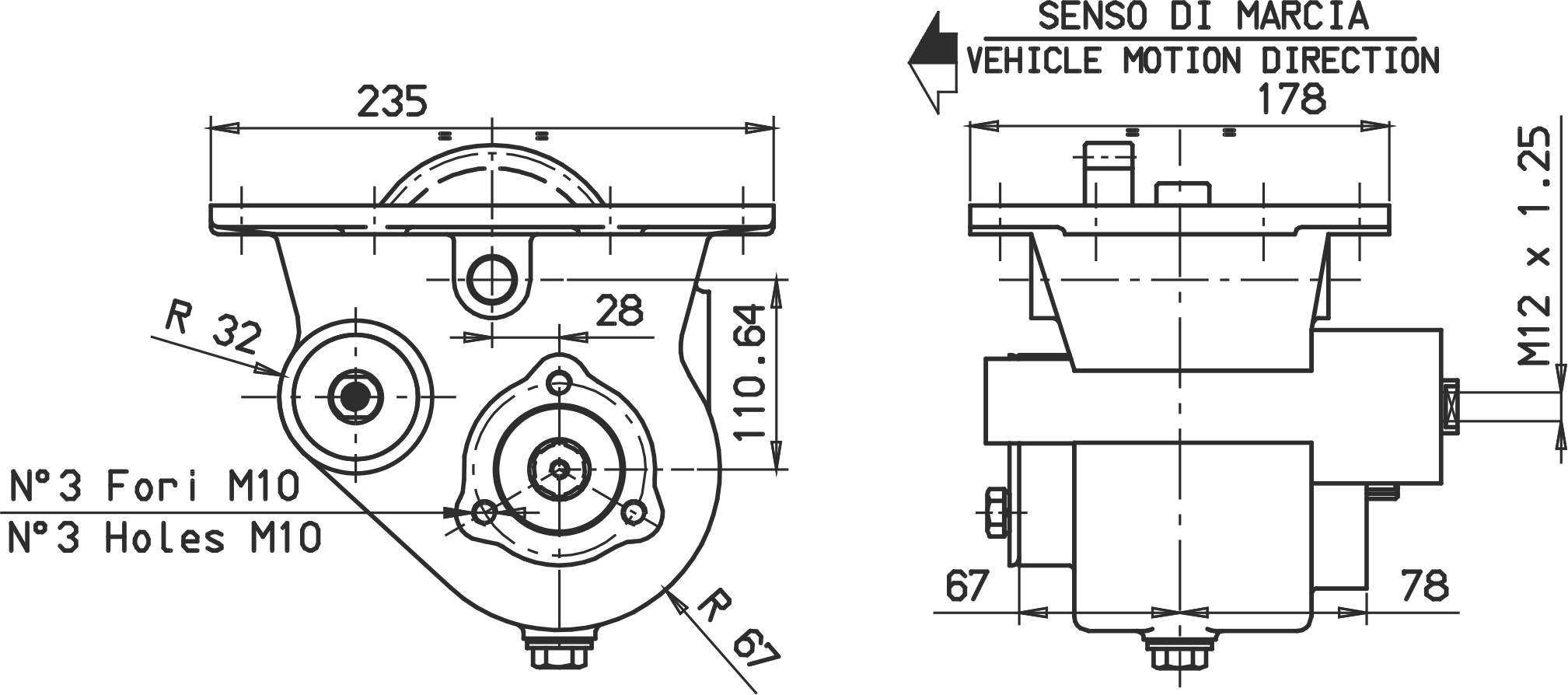

TECH.PICTURE
